DA42 Desktop Trainer
Master the most popular twin trainer.
Elevate Your Flight Training with the Diamond DA42-VI Flight Simulator.
Experience the ultimate in flight training with the Diamond DA42-VI Flight Simulator. Designed to perfectly replicate every aspect of the real DA42 aircraft, our simulator offers an unmatched level of realism and detail.
Every element, from switches to display panels, operates just like in the actual aircraft, creating an immersive training environment. We use OEM switches and buttons for most of the controls on the panel.
For Diamond Aircraft owners and trainee pilots, our DA42 simulator is ideal for refining IFR approach techniques, mastering checklists, EFATO practice and building essential muscle memory. This ensures you stay proficient and confident in every flight situation.
INCLUDED IN THE STANDARD CONFIGURATION:

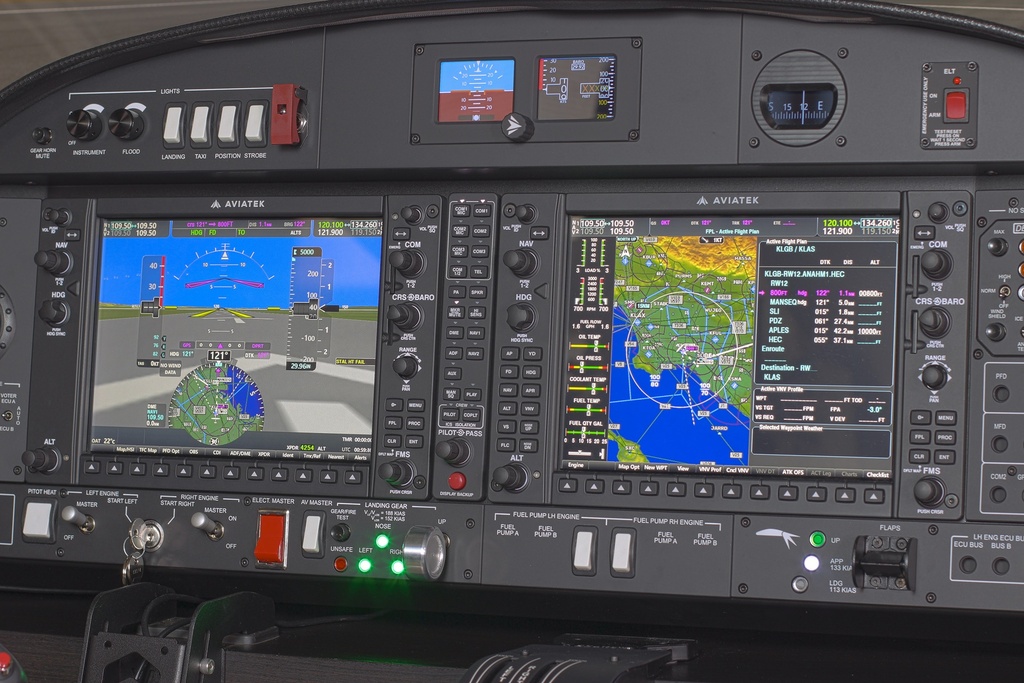

- Plug & Play Main Instruments Panel
Every element, from switches to display panels, operates just like in the actual aircraft, creating an immersive training environment. All panels are backlit. - Custom G1000 NXi Software Package

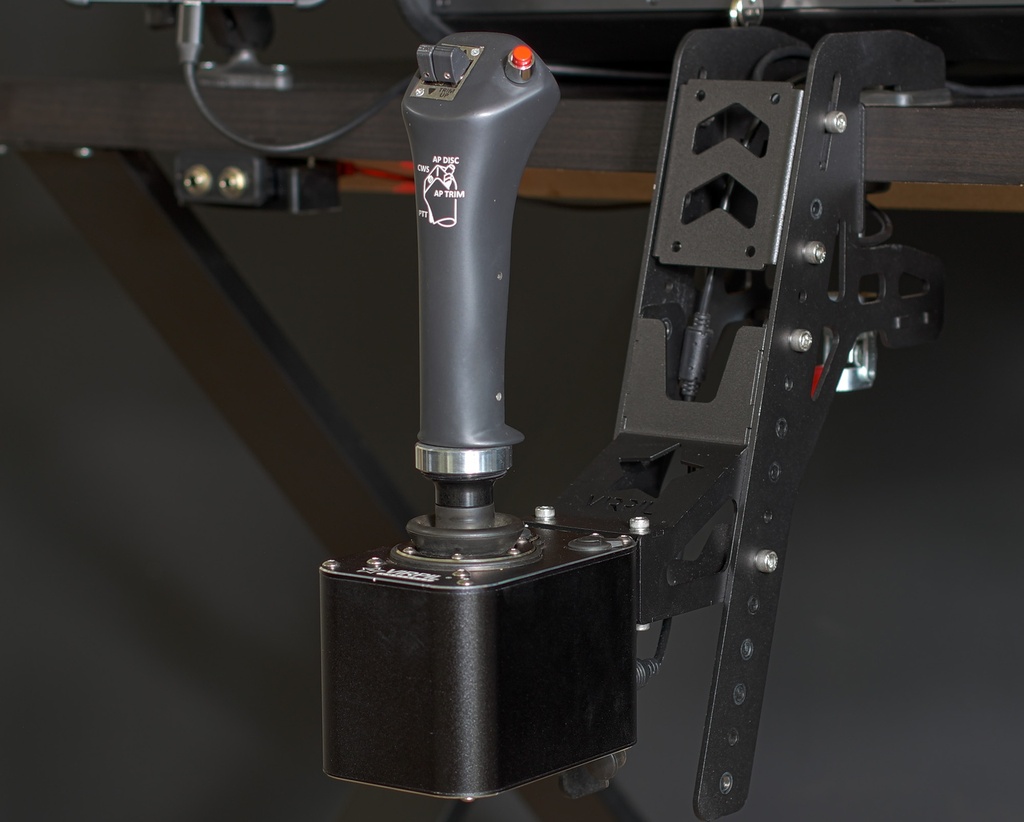

Our high fidelity G1000 NXi simulation software (details below) which allows you to unlock the full potential of the flight model. Requires X-Plane 12. - DA42 Style Flightstick
Using very high quality spring loaded base with precise and durable hall sensors. - Service and support
Remote installation help and 2 year warranty.
OPTIONAL ITEMS:
- Spring loaded or control loaded rudder pedals.
We believe that the control loaded option significantly increased the realism of EFATO practice. - DA42 Style throttle quadrant.
Coming soon. - Powerful preconfigured PC
With this option the system comes as a turn-key solution with all the software installed, configured and ready to fly. - Commercial use license
This system is licensed for personal use only. For commercial use please inquire.

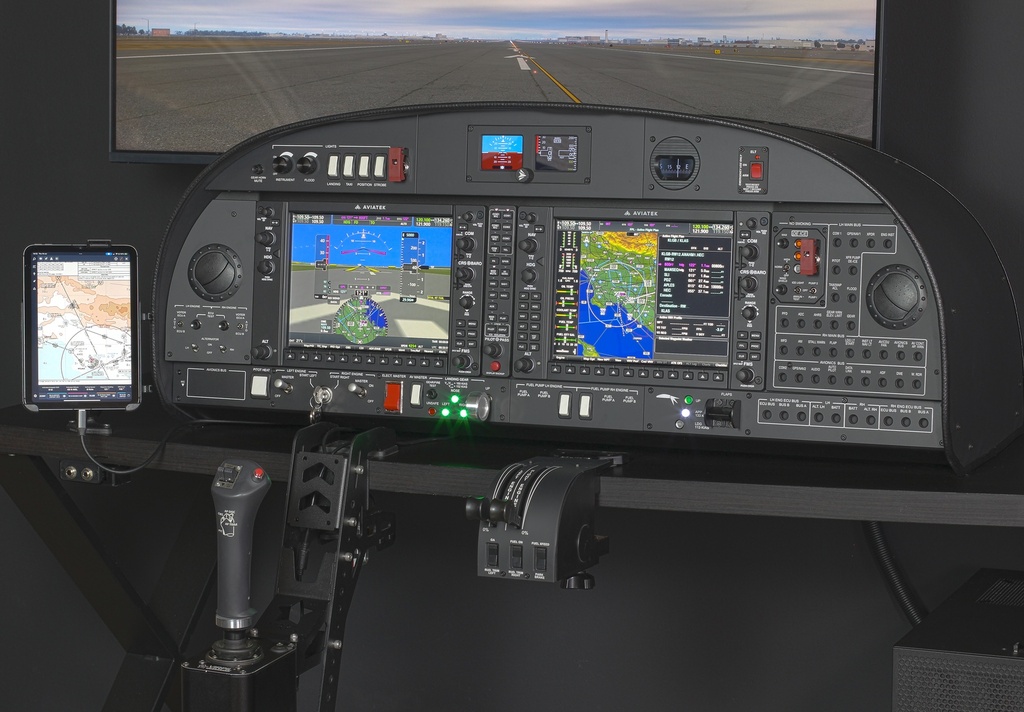

Note: The following pictured items are not included in the set: iPad Mini, throttle quadrant, curved screen, PC (unless added as an option).
SOFTWARE
We use a high fidelity flight model along with the best Garmin G1000 NXi simulation software on the market. It's a standalone software which connects with X-Plane 12.
It includes syntethic vision SVT, VNAV, VPATH Profile, Weather Radar and more.
Every single page is modeled and functional.

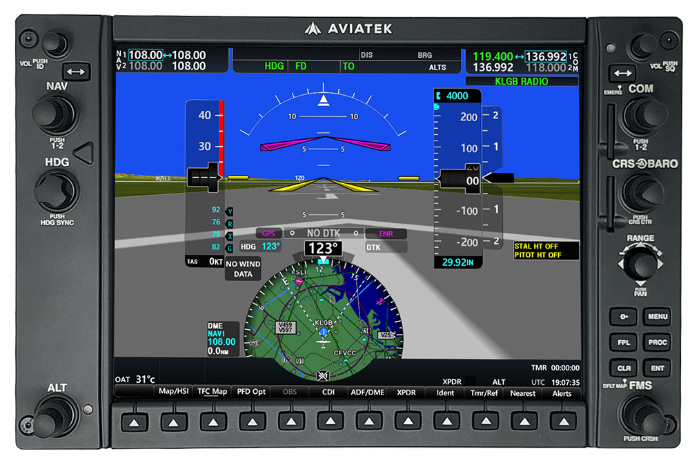

PFD / CAS / SVT
Fully functional PFD with every single button and menu working as in the real airplane. Includes CAS messages, HSI Map and even Synthetic Vision (SVT).

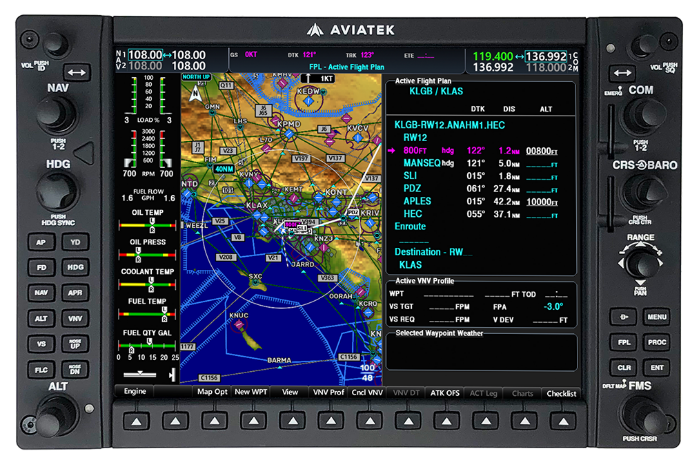

FPL / Procedures
Fly every possible approach from baisic ILS, through VOR, RNAV up to simulated visual approaches. Includes Standard Instrument Departures (SID) and Standard Arrivals (STAR).

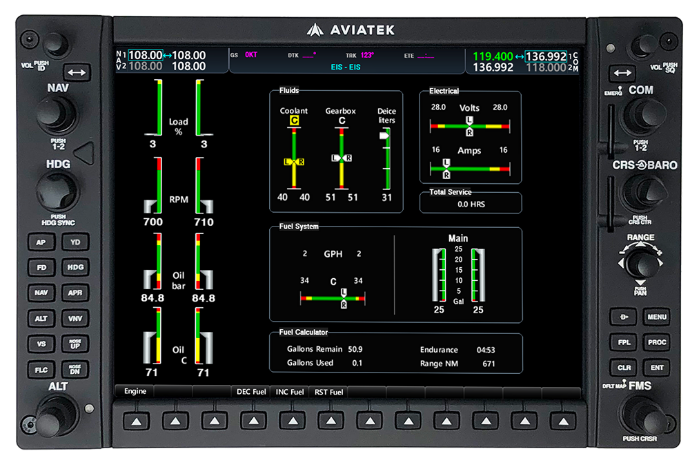

Engine Page
Replicated every single engine indication including the fuel calculator. Each gauge can be failed and also shown crossed out in yellow when a corresponding engine master is OFF.
Reversionary mode
Both screens can be used in the Reversionary mode.

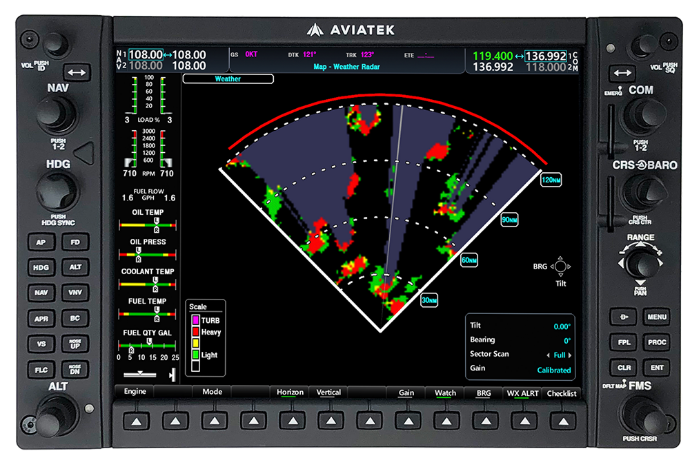

Weather radar
Functional weather radar.

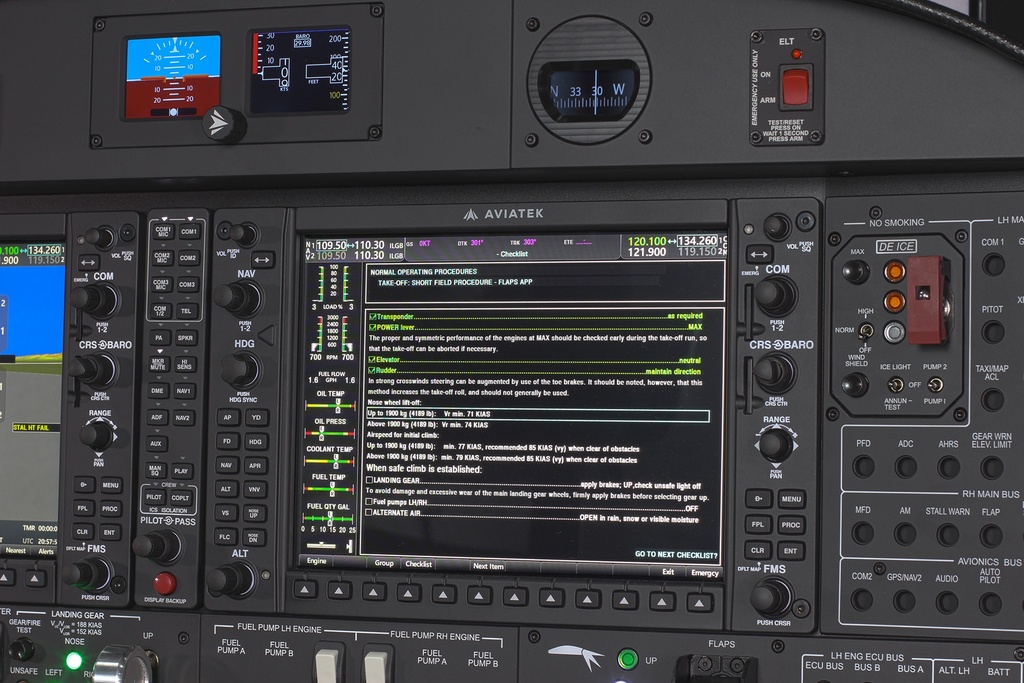

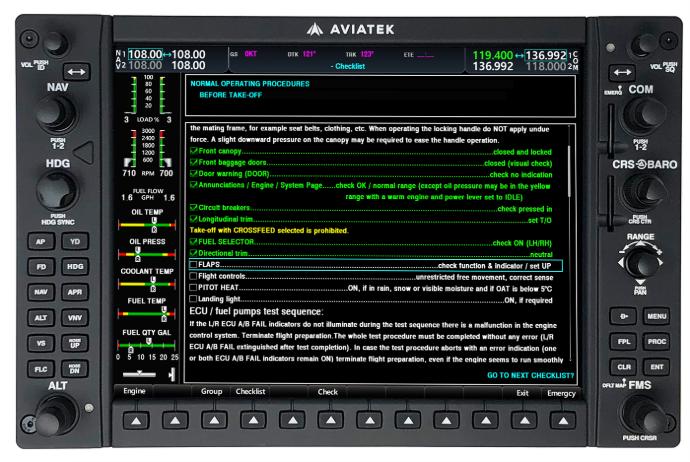

Checklist Page
Includes all checklists from the DA42-VI AFM. We can also modify the contents on request.
DETAILED FEATURES
We use OEM parts for most of the swtiches which means it's the exact same hardware as found in the aircraft. Every panel is LED backlit.
Avionics
- 1 x AV GDU 1040 PFD
- 1 x AV GDU 1055 MFD
- 1 x AV GMA 1347 Audio Panel

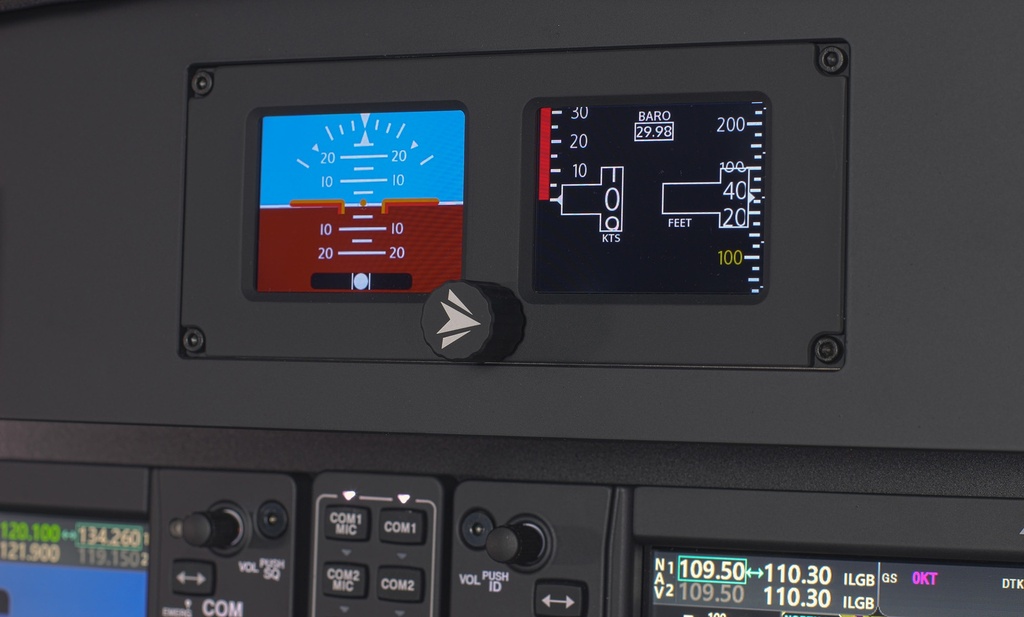

- 1 x SAM MD302 Replica

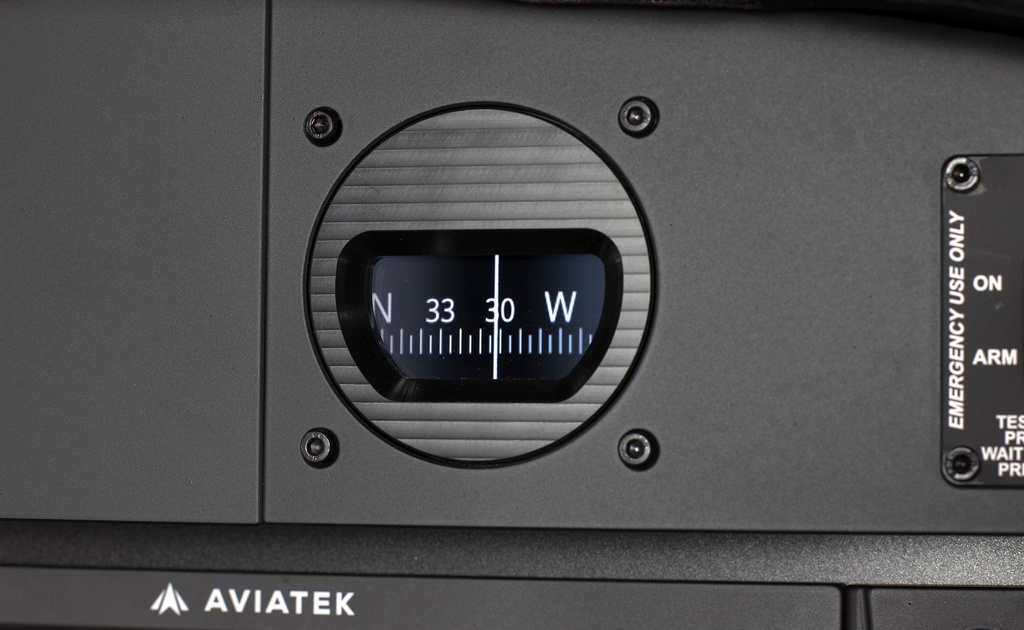

- 1 x Compass (LCD based)

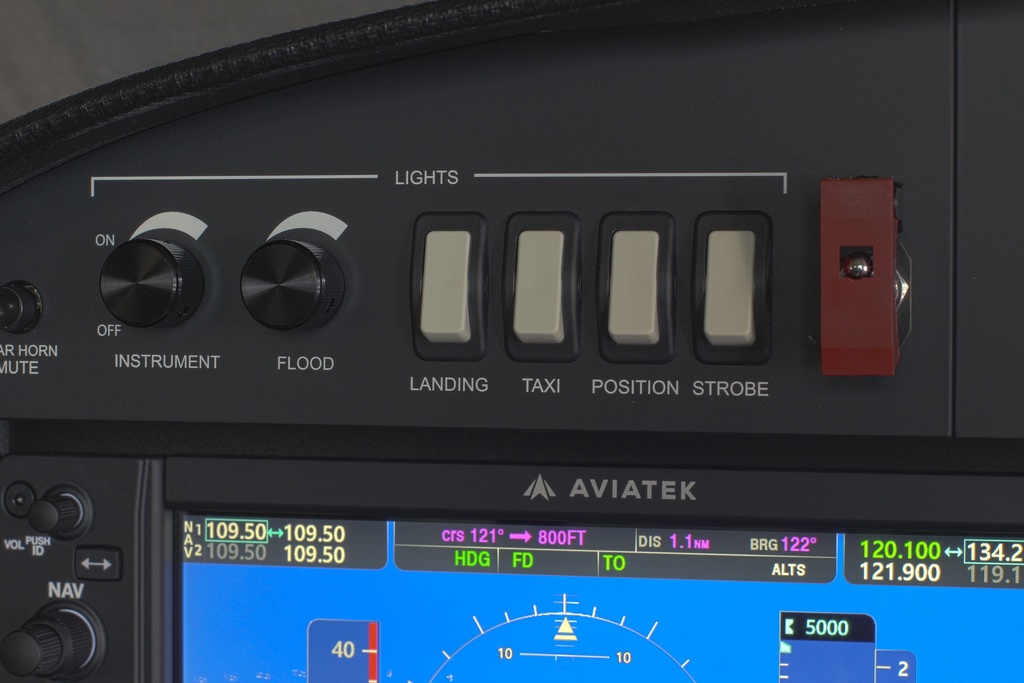

Lights Panel
- Gear horn mute button (OEM)
- Instrument and flood light knobs
- 4 x Light switch (OEM)
- Alternate STBY Instruments switch with an OEM guard

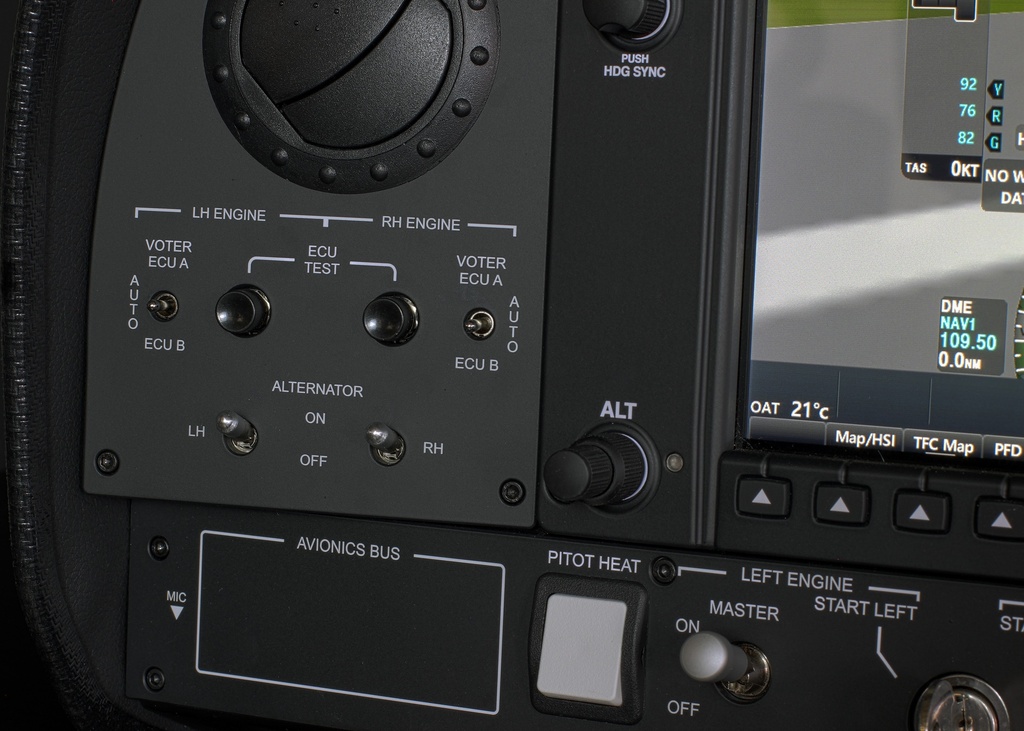

ECU Panel
- 2 x ECU Voter Switch (OEM)
- 2 x ECU Test Button (OEM)
- 2 x Alternator Switch (OEM)

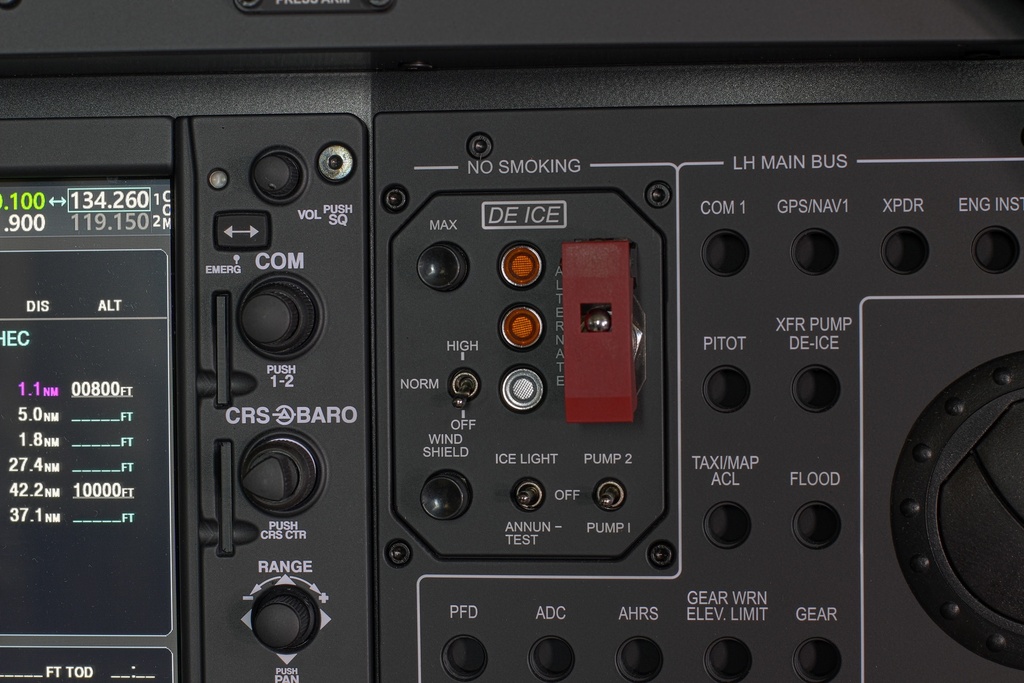

DE ICE Panel
- MAX Button (OEM)
- WINDSHIELD Button (OEM)
- Mode switch (OEM)
- Light/ANNU Test switch (OEM)
- Pumps switch (OEM)
- Alternate switch with guard (OEM)
- 2 x Amber indicator lights
- 1 x White indicator light

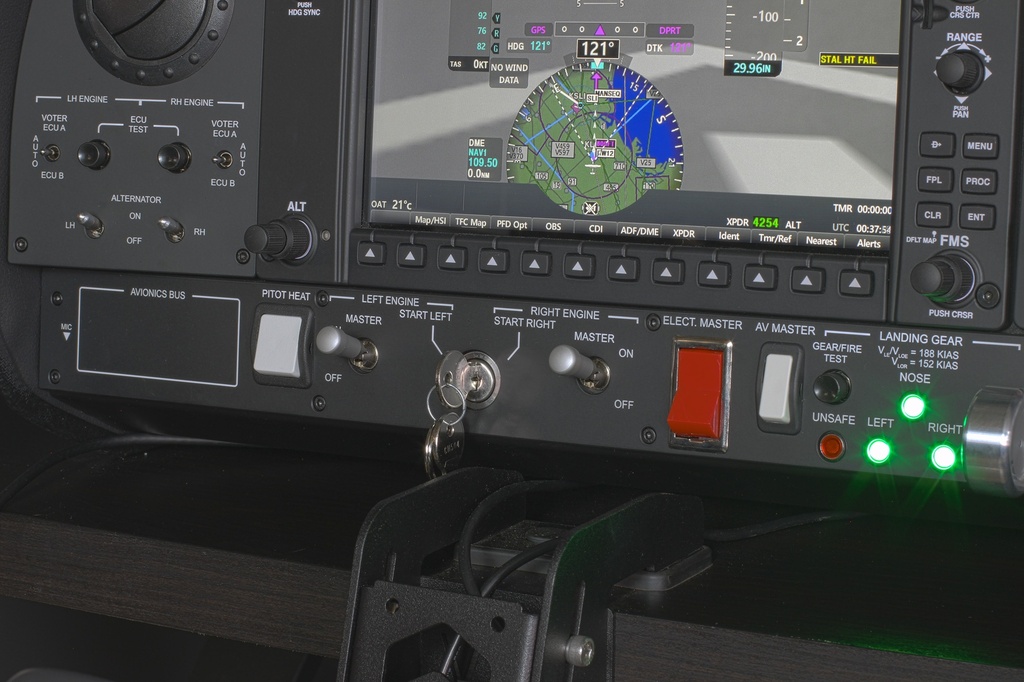

Lower Left Panel
- Pitot heat switch (OEM)
- 2 x Engine master switch
- Key starter (OEM)
- Elec. Master switch (OEM)
- Avionics Master switch (OEM)
- Gear/Fire Test button (OEM)
- Gear selector with knob
- 3 x Green indicator lights
- 1 x Red indicator light
Fuel Pumps Panel
- 2 x Fuel Pump switch (OEM)
Flaps Panel
- 1 x Green indicator light
- 2 x White indicator lights
- Flaps switch with knob and guard
- Cutouts for optional circuit breakers
Circuit Breakers Panel
- Cutouts for optional circuit breakers
TECHNICAL SPECS
Power supply: 115-230 VAC
PC Connections required: 3 x USB A, 2 x HDMI or DisplayPort
Product weight: approx 30 kg

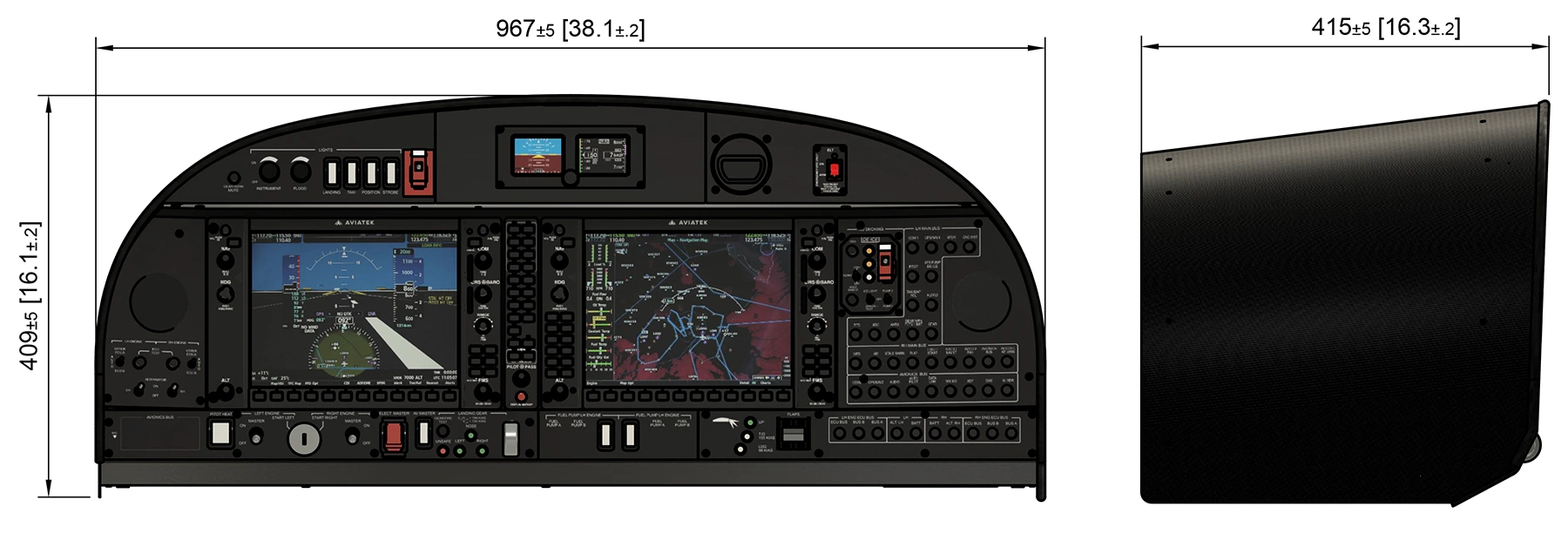

Dimensions: 967 mm x 409 mm x 415 mm (depth) / 38.1 in x 16.1 in x 16.3 in (depth)
LOGISTICS:
Lead time: 8 -10 weeks
Shipping: Quoted prior delivery.
